In general, performance gains of advanced semiconductor technology nodes are realized via increases in the complexity of the system architecture on all levels. At the device level, stacked nanosheet field-effect transistor (FET) designs are currently being explored by leading semiconductor manufacturers. While these nanosheet devices still rely, at present, on silicon channels, further scaling of the channel length requires shrinking of the channel thickness. However, at the required thickness of few nanometers, the mobility in silicon decreases dramatically, whereas in two-dimensional (2D) semiconductors, sizable mobilities are maintained at atomic-layer thicknesses below one nanometer. Despite the promises 2D semiconductors hold for future technology nodes, major challenges remain, such as the identification of suitable gate insulators. Good gate insulators for 2D semiconductor-based FETs should provide a high-quality interface and a minimum number of electrically active border traps while being scalable down to small insulator thicknesses.

Due to its wide availability, many prototype devices so far have used silicon dioxide (SiO₂) as a gate insulator. In Fig. 1, the atomic structure of the interface between SiO₂ and the layered 2D semiconductor molybdenum disulfide (MoS₂) is shown. While, in the ideal case, the surface of MoS₂ is a defect-free Van der Waals surface, the surface of amorphous SiO₂ intrinsically shows a high density of defects and dangling bonds. In 2D FETs, these two surfaces form the critical oxide to semiconductor interface, which for the example of SiO₂/MoS₂ suffers from high interface trap densities on the order of 10¹³cm^-2. This interface trap density exceeds the requirements for industrial applications by about two orders of magnitude, and thereby degrades the observed semiconductor mobility and sub-threshold swing. Moreover, charge trapping of electrons at charge traps in the SiO₂ causes large drifts of the threshold voltage. As the conduction band edge of MoS₂ is aligned within the electron trapping band of SiO₂, charge trapping events are frequent. Therefore, the threshold voltage shifts for negative bias temperature instability (NBTI) measurements on MoS₂/SiO₂ FETs, when normalized by the effective gate stress field of 9.75MV/cm, are around two orders of magnitude higher than the shifts for commercial Si/SiO₂ FETs, see Fig. 2.

In summary, SiO₂ is not a suitable gate insulator for 2D FETs, and the search for suitable gate insulators for 2D nanoelectronics continues to be an ongoing research effort. Promising candidates currently being explored include layered insulators, (e.g., muscovite mica), ionic fluorides (e.g., calcium fluoride), or native oxides to layered semiconductors (e.g., hafnium dioxide or bismuth selenide).

Fig. 1: Illustration of the atomic structure of the MoS₂/SiO₂ interface which contains many dangling bonds, resulting in a defective interface. Here, molybdenum atoms are shown in black, sulfur in light yellow, silicon in dark yellow, oxygen in red, and hydrogen in blue.

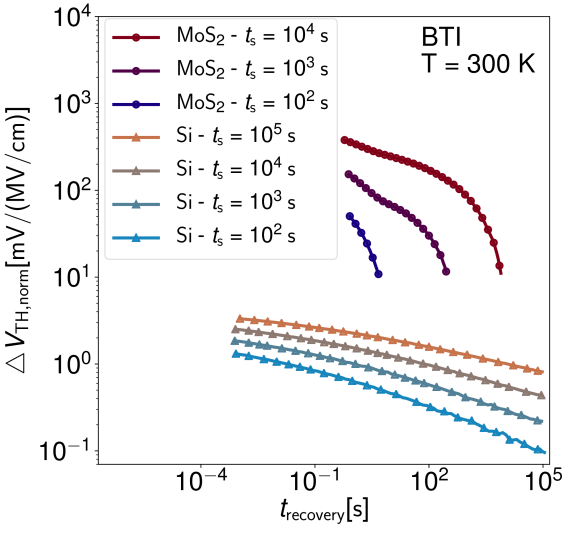

Fig. 2: Negative bias temperature instability (NBTI) as measured on silicon/siliconoxynitride and MoS₂/ silicon dioxide FETs. BTI shifts are normalized by the respective gate oxide stress fields to ensure comparability.
