3.3 Examples

The above models were implemented in MINIMOS-NT and several simulations were carried out to confirm the theoretical results and the validity of the simplifying assumptions.

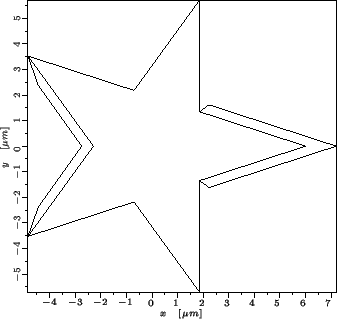

Figure 3.8: a) Geometry of the homogeneous doped semiconductor. b) Geometry of Gummel's pentagon.
