5.5.3 Flow-Line Module Algorithm

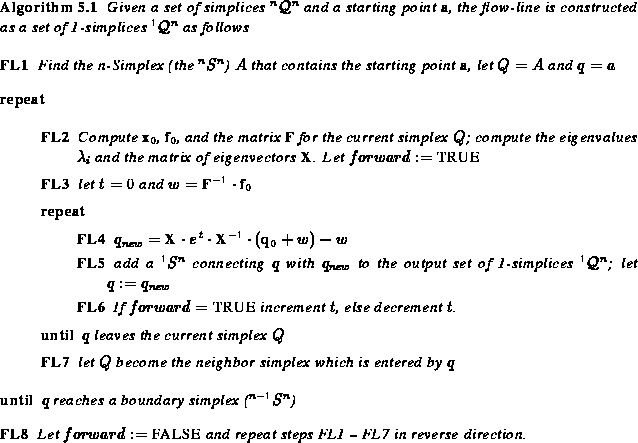

The implementation of the flow-line construction uses the following basic algorithm



Note that this algorithm is independent of the underlying dimension . Only the computation of the eigenvalues and eigenvectors, FL2, is more elaborate for the three-dimensional case.



Martin Stiftinger
Thu Oct 13 13:51:43 MET 1994
