10.1.1 I-V curves

The resulting I-V curves for the RTD are depicted in Fig. 10.1.

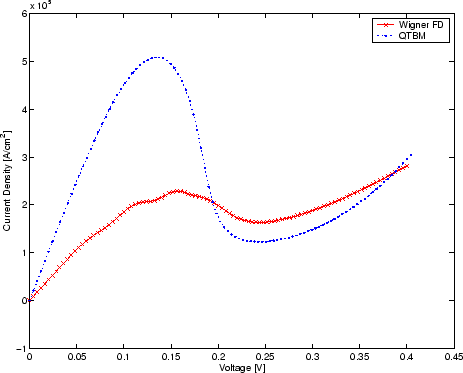

Figure 10.1: I-V curve comparing Wigner and von Neumann simulation

While the QTBM solution has a peak-to-valley ratio of approximately 5, the Wigner solution only shows a weak resonance with a peak-to-valley ratio of roughly 1.4. So it seems as if in the Wigner function simulation some scattering mechanisms are included which diminish device performance.
