10.1.3 Carrier Density

The carrier density for zero bias is compared in Fig. 10.3. For the Wigner function we calculated the carrier density again in the ``naive'' way (summation over all $ k$'s for a fixed $ x$).

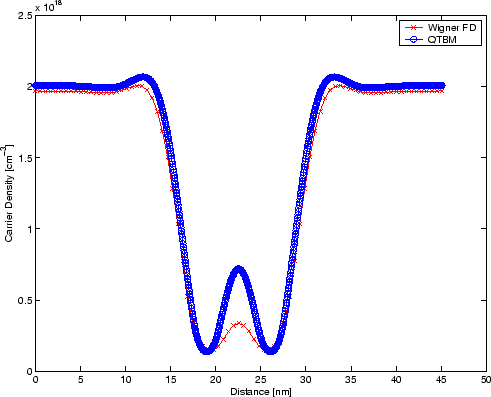

Figure 10.3: Comparing carrier density from Wigner and von Neumann simulation
\includegraphics[width=0.9\columnwidth
]{Figures/EpsXdensityComparisonA}
The main difference is in the carrier distribution inside the well. It is much higher with the QTBM than with the WFM.
