B UNFUG Reference



The notions of template source files, tuple files, and output source files are introduced with UNFUG. Template source files (extension .tpl in VISTA) are incomplete source code parts in any (programming) language containing special UNFUG expressions enclosed in angle brackets <>, which are explained below. Tuple files (extension .tup in VISTA) hold named tuples consisting of a list of variables and associated values in LISP syntax. If such a named tuple is referenced in a template source file, the variables are associated with their respective values in a code generation loop. Output source files (having the extension of the respective programming language source files of the target operating system) are the result after applying UNFUG to a template source file. Fig. B.1 shows the file and data flow using UNFUG for the example on page gif.

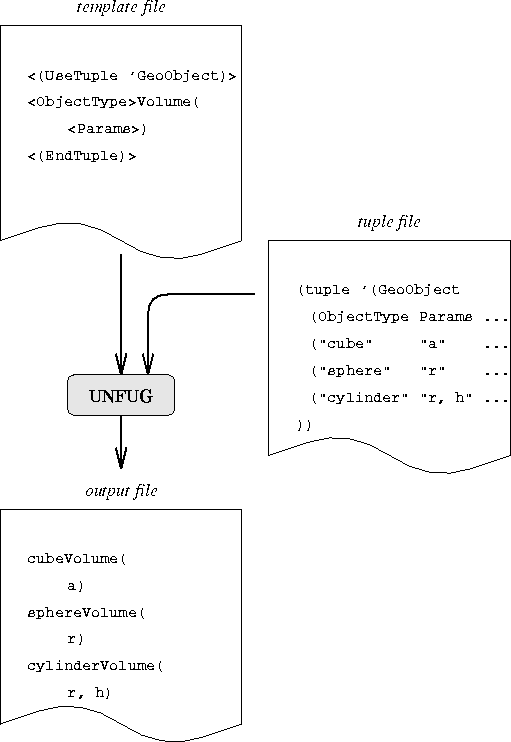

Figure: UNFUG data flow
