5.8 Mixed-Mode

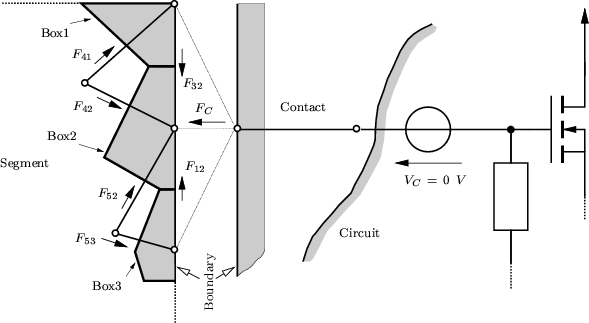

Figure 5.3: Contact handling for mixed-mode
\begin{figure}
\begin{center}
\resizebox{16cm}{!}{
\psfrag{Contact} [l][l]{$\scr...
...degraphics[width=16cm,angle=0]{figures/contact-new.eps}}\end{center}\end{figure}

In case of a mixed-mode simulation (5.20) is replaced by

f$\scriptstyle \psi_{C}$ = $ \psi_{C}^{}$ - $ \varphi_{C}^{}$ = 0 (5.27)

with $ \varphi_{C}^{}$ being the node voltage of the circuit node connected to the device. This can be interpreted as a zero-valued voltage source connecting the circuit node to the device (see Fig. 5.3). The constitutive relation for $ \varphi_{C}^{}$ follows from KCL and reads

f$\scriptstyle \varphi_{C}$ = $ \sum_{i}^{}$IDi + IC = 0 (5.28)

with IDi being the currents of the compact models connected to the same node. In terms of the familiar MNA stamps

jx, y $ \varphi_{C}^{}$ $ \psi_{C}^{}$ IC r
$ \varphi_{C}^{}$     -1 f$\scriptstyle \varphi_{C}$k
$ \psi_{C}^{}$ 1 -1   f$\scriptstyle \psi_{C}$k
IC     -1 fICk

For the same one-dimensional contact the relevant part of the system matrix reads

jx, y $ \psi_{0}^{}$ n0 $ \psi_{C}^{}$ IC $ \varphi_{C}^{}$ r
$ \psi_{0}^{}$ -1   1     f$\scriptstyle \psi_{0}$k
n0   -1       fn0k
$ \psi_{C}^{}$     -1   1 f$\scriptstyle \psi_{C}$k
IC - $ {\frac{\partial \displaystyle I_{01}}{\partial \displaystyle \psi_{0}}}$ - $ {\frac{\partial \displaystyle I_{01}}{\partial \displaystyle n_{0}}}$   -1   fICk
$ \varphi_{C}^{}$       -1   f$\scriptstyle \varphi_{C}$k

Eliminating $ \psi_{0}^{}$, n0, $ \psi_{C}^{}$, and IC yields the desired result

jx, y $ \varphi_{C}^{}$ r
$ \varphi_{C}^{}$ - $ {\frac{\partial \displaystyle I_{01}}{\partial \displaystyle \psi_{0}}}$ - f$\scriptstyle \psi_{C}$k + fICk + fn0k . $ {\frac{\partial \displaystyle I_{01}}{\partial \displaystyle n_{0}}}$ - $ {\frac{\partial \displaystyle I_{01}}{\partial \displaystyle \psi_{0}}}$ . (f$\scriptstyle \psi_{0}$k + f$\scriptstyle \psi_{C}$k)
