5.1 Monte Carlo Simulations

The Monte Carlo code described in [62] has been used to generate reference data for comparison. Such comparison shows that the energy transport model significantly overestimates the electron diffusion into the substrate, (Fig. 5.1) whereas the drift-diffusion model underestimates it (Fig. 5.2).

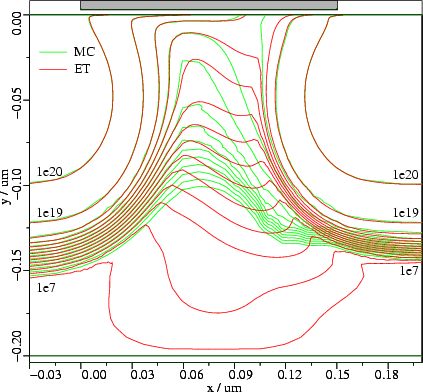

Figure 5.1: Electron concentration in a MOSFET (Device 3) obtained by energy transport and Monte Carlo simulations.
\includegraphics[width=.6\textwidth]{eps/2D_eleMCET_rot}

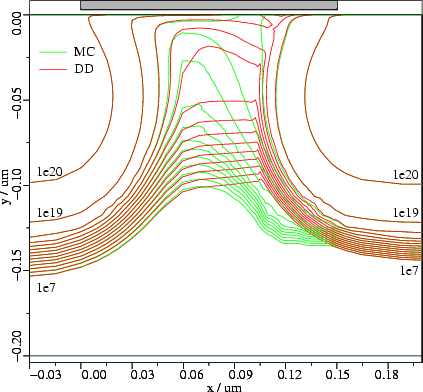

Figure 5.2: Electron concentration in a MOSFET (Device 3) obtained by drift-diffusion and Monte Carlo simulations.
\includegraphics[width=.6\textwidth]{eps/2D_eleMCDD_rot}

In Monte Carlo simulations the spreading of hot carriers away from the interface is much less pronounced than in energy transport simulations (Fig. 5.3). Another Monte Carlo/energy transport comparison is reported in [63]. The authors state that the electron concentration resulting from the energy transport model are several orders too high in the substrate region of a MOSFET, and propose a reduction of the heat flow by multiplying it with a constant $ 0.2$ to get better agreement between energy transport and Monte Carlo results. However, even with this crude measure the electrons under the pinch off region still spread deeply in the substrate [63, Fig.5].

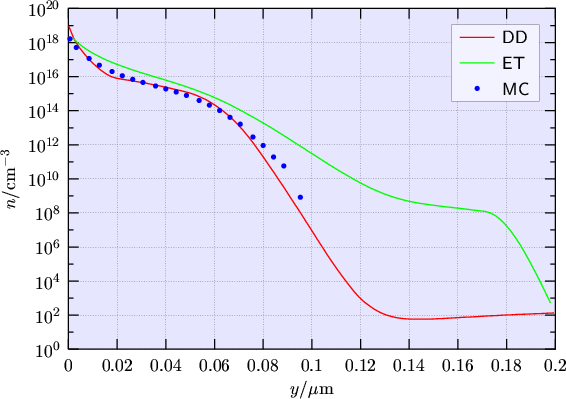

Figure 5.3: Comparison of the electron concentration in a MOSFET (Device 3) at a vertical cut located in the middle between source and drain obtained by drift-diffusion, energy transport, and Monte Carlo simulations.
\includegraphics{gpfigure/n-cut-MC-ET-DD.color.eps}
