6.6 Comparison with a Two-Dimensional Simulation

The LOCOS structure shown in Fig. 6.3 is in principle a two-dimensional structure with a 0.4$ \mu $m stripped mask. Therefore, the three-dimensional simulation results from FEDOS can be compared with a two-dimensional oxidation simulation. For the stress dependent simulation with FEDOS a wet oxidation with a period of 20 minutes at 1000$ ^{\circ }$C was assumed. The same parameters are used for an oxidation simulation on an equivalent two-dimensional structure with the commercial process simulation program DIOS [14]. The DIOS output is shown in Fig. 6.15. As illustrated in Fig. 6.10 the results from FEDOS are in good agreement with DIOS.

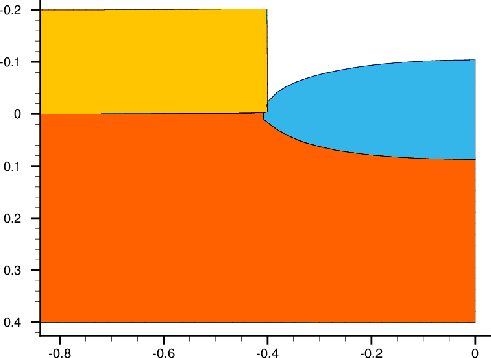

Figure 6.15: Two-dimensional oxidation simulation with DIOS.
\includegraphics[width=0.7\linewidth]{/iuehome/hollauer/dios/screenlocos1c.ps}
