Thermal oxidation is the process of silicon dioxide (SiO2) extraction
from pure silicon (Si) as a result of a chemical reaction of silicon and
oxygen (O2).
There can be distinguished between two production techniques
- dry oxidation:
the silicon wafer is settled to a pure oxygen atmosphere at a
temperature above
900oC. At the surface of the wafer a chemical
reaction
Si + O2
SiO2 |
|
|
(2.23) |
takes place. Because of a very low
oxidation velocity (< 100 nm/h), this method is often used to
generate high quality thin oxide layers.
- wet oxidation: the silicon wafer is settled to a water vapor
atmosphere and the reaction equation can be written as
Si + 2H2O
SiO2 + 2H2. |
|
|
(2.24) |
This process has a rather high oxidation velocity
(> 20 nm/min) and is therefore often used to produce oxide layers
for insulation and passivation techniques.
Both have in common, that the grown oxide consumes the necessary
silicon from the wafer substrate itself, where the ratio between
the thickness of consumed silicon to the thickness of the grown
oxide is a factor of 0.44 (Fig. 2.2).

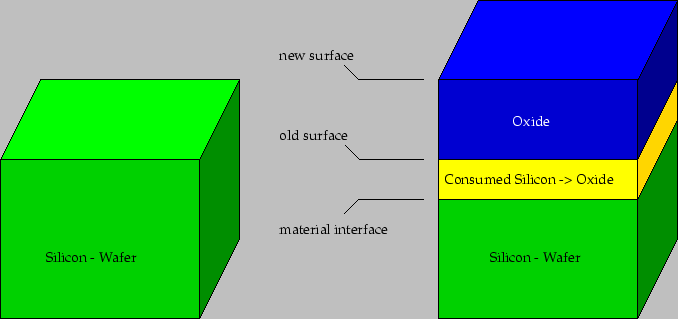

Figure 2.2:
Oxide growth by thermal oxidation
|
