E.3 Numerical Results

A comparison of threshold voltages based on the definitions 1,4,5, and 6, i.e., \ensuremath{V_{\mathit{T,inv}}}, \ensuremath{V_{\mathit{T,fit}}} (using the EKV equations), \ensuremath{V_{\mathit{T,lin}}}, and \ensuremath{V_{\mathit{T,sat}}} is shown in Figs. E.1-E.3. The data were obtained by device simulations of a device with $\ensuremath{L}\xspace =1\mu\rm m$, $\ensuremath{t_{\mathit{ox}}}\xspace =5\rm n m$, and a constant channel doping of $\ensuremath{N_{\mathit{ch}}}\xspace =\rm 4\cdot10^{17} cm^-3$. What can be seen in these figures - apart from the expected qualitative dependencies - is that the threshold voltages differ by some 100mV over wide ranges of parameters. Figure E.4 shows the unique threshold current as a function of the gate length. The deviation of this curve from a straight lineE.3 indicates a difference between definitions 2 and 6. The reason for decrease of \ensuremath{I_{\mathit{T}}} at very small channel lengths is the threshold voltage drop and the increased output conductance, which both tend to lower the value of \ensuremath{I_{\mathit{T}}} determined according to definition 6. In other words: the peak of the $\ensuremath{I_{\mathit{T}}}\xspace (L)$ is an indicator for short-channel effects.

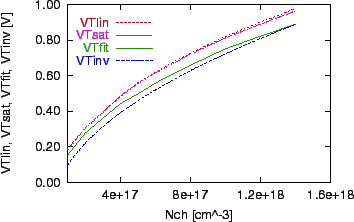

Figure E.1: Threshold voltage vs. channel doping
\includegraphics[scale=1.0]{mx-vt-n.eps}

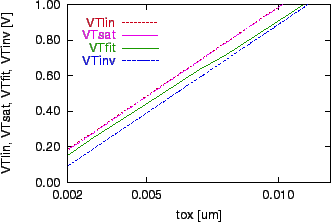

Figure E.2: Threshold voltage vs. oxide thickness
\includegraphics[scale=1.0]{mx-vt-to.eps}

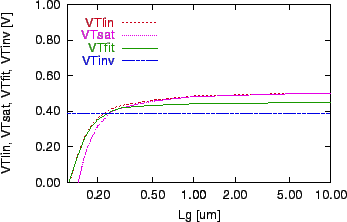

Figure E.3: Threshold voltage vs. channel length
\includegraphics[scale=1.0]{mx-vt-l.eps}

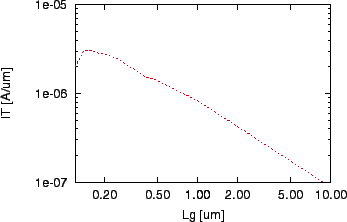

Figure E.4: Unique threshold current vs. channel length
\includegraphics[scale=1.0]{mx-it-l.eps}




Footnotes

... lineE.3
or $1/L_\mathit{eff}\approx 1/(L-\Delta L)$, which would mean even a larger difference.
