6.2.1 Evaluation Network

Fig. 6.3 shows the evaluation network for the gate delay time optimizations. After reading a given set of optimization parameters, the device descriptions of both the NMOS and PMOS transistors are generated with Makedevice and written on PIF files. Then two transient device simulations are carried out, one for the on-transition, the other for the off-transition of the single inverter stage of Fig. 6.2. Additional input data, besides the device descriptions, are taken from a data container including the input V-t curves of the inverter and the C-V curves of the capacitive load $\mathrm{C_L}$, both for the two transition cases.

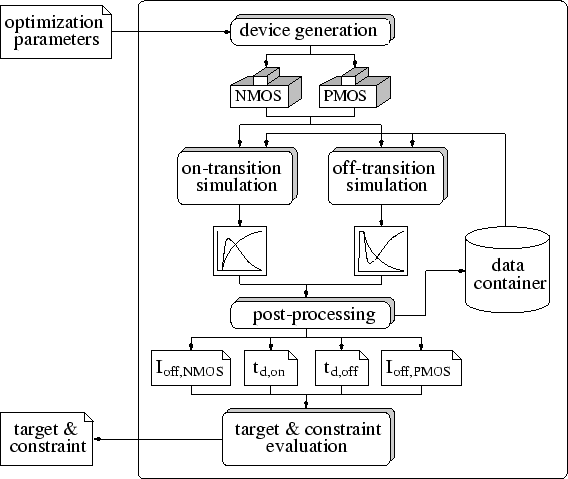

Figure 6.3: The evaluation network for gate delay time optimizations.

With the simulated output V-t and the transistors' $I_{\mathrm{d}}$-t curves, the delay times and leakage currents are calculated in a post-processing step. To find the delay times, the time-points when the inverter's input and output V-t curves cross the $V_{\mathrm{dd}}$/2 mark are extracted and subtracted from each other. This is done using a script which also delivers the leakage currents taking advantage of the fact that the cross-current of the inverter stage at the beginning of the transient simulation is exactly the leakage current of one of the transistors, depending on which transition case is simulated. Finally, the target and constraint are evaluated using (6.2) and (6.3).
