7.5 Resistance of Interconnect Wires
Metal wires are also subject to defects. Besides electromigration problems,
shorted lines and too narrow lines (or even opens) are also cause of integrated
circuit failure. These, in turn, are sometimes related
with lithographic issues. Another associated problem is in integrated circuit
power distribution lines for which the current was underestimated by the layout
designer, leading to very high current densities. We can predict these
problems by performing a lithography simulation as explained in
Chapter 3 followed by an electrical simulation. Besides
extracting the resistance of the wire, it is important to know the
current density flowing in it.
Using the imaging system described, some eventually too narrow line faults
where reported by the lithography tools for the layout of
Figure 3.1, when the imaging system described in
Section 3.4.2 is used.

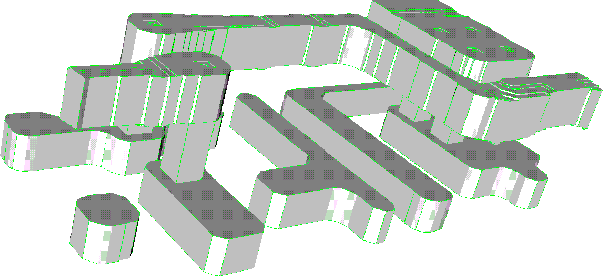

Figure 7.12:
Part of the three-dimensional model of the layout in
Figure 3.1.
|
In Figure 7.12 we show a part
of the three-dimensional model, where an electrical simulation was done.
We observed that the current density in some places is 2 times larger than that
for structures where lithography is not taken into account. The corresponding
voltage drop along some lines is also too high as it is shown
in Figure 7.13. We concluded that the layout, with some
automatically routed nets in METAL2, must be modified, and the problems
predicted by the lithography analyzer were confirmed.

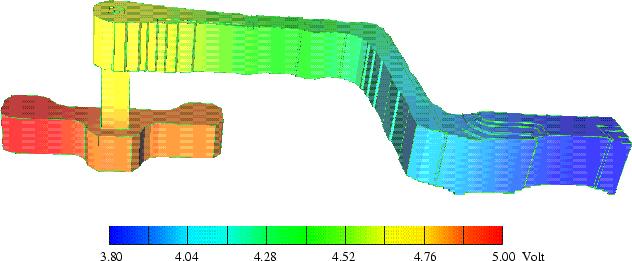

Figure 7.13:
The potential distribution along a interconnection wire
of the layout in Figure 3.1 where problems
were reported by the lithography tools.
|
