When analyzing the behavior of a semiconductor device as a
function of its geometrical dimensions,
e.g., the dependence of the threshold voltage and other
characteristics of a MOS transistor on the gate length
(short channel effects
),
all lithography steps have to be supplied with varying coordinate values.
These variations are usually performed after the link between ECAD
and TCAD has been severed, i.e., in a stand-alone fashion just
generating appropriate values without using mask files.
While this approach is acceptable when there exists only a loose link
with the ECAD domain, is imposes severe limitations on the
application of ECAD tools for checking the coordinates generated against
constraints stemming from design rules or from the two-dimensional
(mask) situation.
To couple ECAD and TCAD more tightly, and also to facilitate the feed-back process once optimum coordinates have been found for a geometrical optimization problem, the variations must already be applied at the layout stage. To this end, layout needs to be parameterized and subjected to modification for each design space point to analyze. Figure 5.11 shows the principal mechanism for deriving varying coordinate values from the layout. As the challenges that arise when parameterizing geometrical data are far from being trivial, active research has still to be done in this area.

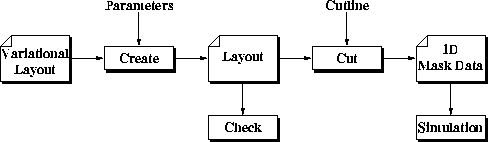

Figure 5.11:
Generation of mask data from variational layout.
Before data is used, geometrical checks can be
run on the layout produced from the template.
