2.2.2 Convolution Method

  To describe a two-dimensional profile in a correct manner all point responses of the implanted ions have to be summed up at the local coordinates. As this seems to be not realistic, some kind of discretization has to be done to limit the number of accountable ions. As point responses can be easily defined by two independent density functions, one in lateral and on in vertical direction, the final profile can be obtained by a convolution integral of lateral and vertical density functions. Therefore, we discretize the given simulation geometry into a limited number of slices, which are arranged in the direction of the incoming ions to capture some tilting effects. Figure 2.2-2 shows the conditions after discretization of the simulation domain. In each slice the vertical density function is initialized by using the numerical range scaling method accounting for different target materials.

   figure628

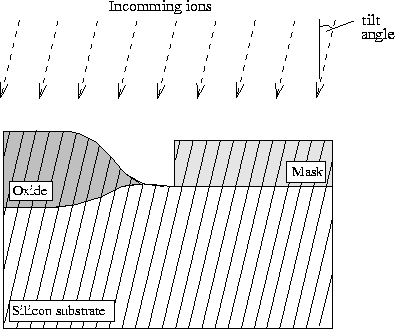

Figure 2.2-2: Discretization of the simulation geometry for a given tilt angle using the slab method. For the initialization of the vertical distribution function the numerical range scaling is applied.

During the initialization of the vertical density function the flight path of the ions is assumed straight forward following the incoming direction. All intersections with the geometry are detected and used for the calculation of the characteristic parameters of (2.2-1) to (2.2-3). The algorithm can even handle holes or vacuum regions. In this case the initialization is continued when the ions hit the next non-vacuum region. We suppose implicitly that the ions do not change their direction when leaving the upper part of one layer and entering the lower part of the underlying one.

The same numerical algorithms are applied for the initialization of the lateral density function. Though lateral dopant profiles are hard to measure, their importance increases with the continuous decrease in minimal device dimensions. Moreover, it is of vital importance for the subsequent annealing process to obtain accurate initial conditions after the ion implantation. The simple Gaussian distribution is often used to model the lateral spread of the profiles [Gil88] [Fur72]. Monte Carlo simulations indicate that modified Gaussian density functions are well suited to model the lateral spread [Hob87] [Hob88].

To get the final concentration C(x,y) at a location (x,y), we add up the lateral and vertical distribution density functions by (2.2-5).

  equation640

The convolution is performed in the normal coordinate system of the slices, and the result is mapped onto the simulation grid point (x,y) by a coordinate transformation. Normally, the simulation domains are always a representative section of the real physical wafer domain, unfortunately, we have to introduce artificial simulation boundaries. In reality we would have a constant implantation profile at this artificial boundaries for a planar wafer. Due to our convolution method the dopant concentration would drop off at these boundaries, because the convolution integral is performed till these artificial boundary and ,hence, the infinite tail is of the convolution (2.2-5) is neglected. The loss of dopants will be tex2html_wrap_inline4979 at the boundary. By using a Gaussian lateral density function, this artificial boundaries can be handled by mathematical expansions of the integral to infinity (erfc-functions). This is only valid for non-tilted (ion-beam perpendicular to surface) implantations. The only way to fulfill the boundary conditions for tilted implants is to extend the simulation geometry several times tex2html_wrap_inline4981 , where tex2html_wrap_inline4981 is the standard deviation of the target border material.

As the resulting dopant concentration has to be defined on a simulation grid for further simulation tools, it is obvious that the density of the initial slices is determing the accuracy of the result. By increasing the slice density the simulation geometry is traced more efficiently. It should be pointed out at this place, that the simulation grid is only used as vehicle to transfer the information for subsequent simulation tools. For sake of simplicity we used an ortho-product grid, but there is no principal limitation for using unstructured grids.
