In MINIMOS, the impact ionization rate is based on the following exponential equation [46]:
Where is the local electric field,
is the distance from the
SiO
/Si interface, and
, the depth dependence, is given by the
expression:
The values of the coefficients in the above equation can be determined by
nonlinear least squares optimization to match the MINIMOS simulated
values to experimental data.

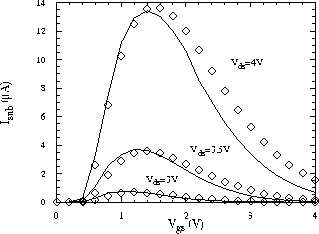

Figure:
Comparison of measured (symbols) and simulated (lines) values,
at
= 3, 3.5, and 4 Volts, and gate length of

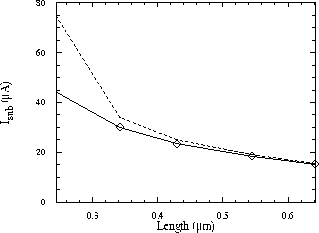

Figure 5.7:
Comparison of measured (symbols) and simulated with (solid line) and without
(dashed line) calibration of peak values,
as a function of gate lengths.
