6.2.1 PCIM Model fit

The PCIM analytical MOSFET model [3] used in the extraction is a   continuous physically based MOSFET model for circuit simulation that takes   into account bias dependent overlap capacitance and poly depletion effect observed in submicron MOSFETs. The PCIM model is incorporated as a built-in task module model. Thereafter, the extractions are performed using the nonlinear least squares optimization. Indeed the whole procedure of worst case corners determination, generation of I-V and C-V characteristics, and extraction of analytical model parameters can   be automated using a script of task module commands.

The PCIM model accuracy in predicting the device characteristics for all bias and channel lengths of interest is excellent for both N- and P-channel devices.   Typically the average fit error is within 3% for I-V and 10% for C-V data. Figures 6.3-6.6 show results for the N-channel typical case. Similar good agreement is also obtained for the remaining cases and for the P-channel data.

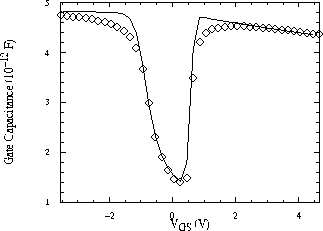

Figure 6.3: Comparison of MINIMOS (symbols) and PCIM model (solid line) gate capacitance calculated values for a device with length of 20m and width of m.

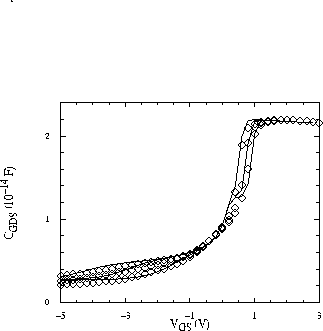

Figure 6.4: Comparison of MINIMOS (symbol) and PCIM model (solid lines) overlap capacitance capacitance values for a device with length of m for varying and width of .

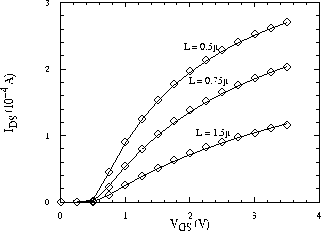

Figure 6.5: Linear region characteristics at zero for devices of width of with length of , , and .

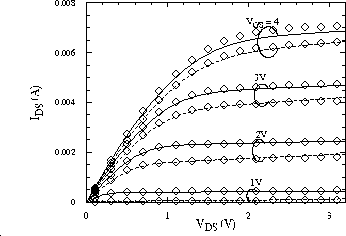

Figure 6.6: ID-VD characteristics at varying and for devices with length of , width of .



Martin Stiftinger
Tue Aug 1 19:07:20 MET DST 1995
